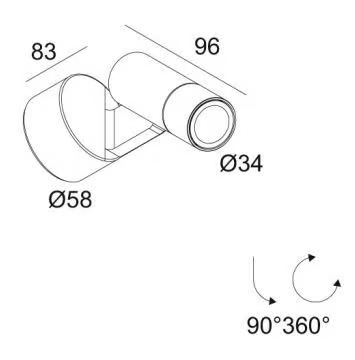

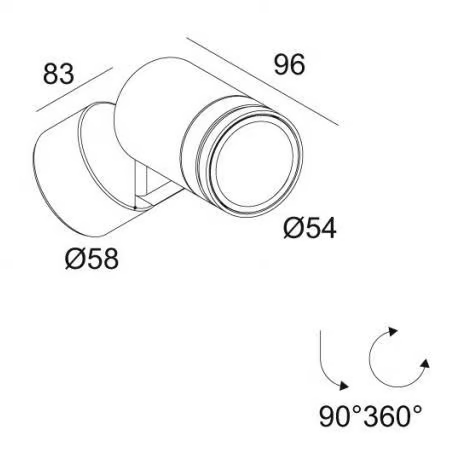

Overall dimensions
Information

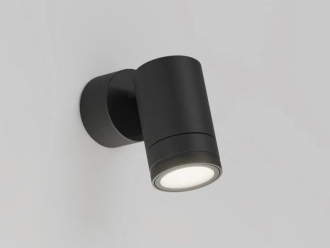

Spix S/M is a LED adjustable metal outdoor spotlight. Available colors: dark grey.
Technical characteristics
SPIX M 24V 93030: 1 x LED 8,2W / CRI>90 / 3000K / 677lm
SPIX M 93030: 1 x LED 3,9-8,2W / CRI>90 / 3000K / 385-677lm
IP65
Energy Class: G
SPIX S 24V 83010: 1 x LED 2,6W / CRI>80 / 3000K / 304lm
SPIX S 83010: 1 x LED 1-2,6W / CRI>80 / 3000K / 132-304lm
IP65
Energy Class: F
As a projector for exterior use, Spix has many appearances. It comes as a surface mounted spotlight, as a version on pin to put in between the greenery or as a bollard with 2 or 3 light units. Like
this, Spix can be used throughout a complete outdoor project, to light up trees, emphasize architecture or highlight pathways.
Although compact in size, the clever design of Spix offers a solution without any visible cabling outside of the luminaire. The hinge of the projector not only serves to tilt it into the wanted direction, it also hides away a passage for the cabling.
Uniform in design, Spix comes in 2 sizes: a smaller 10° version for accent lighting and a bigger 30° version for more general light. To shield the passerby from looking into the projector and to reduce unwanted spill light, the bigger version can be finished with a kap on the front.
