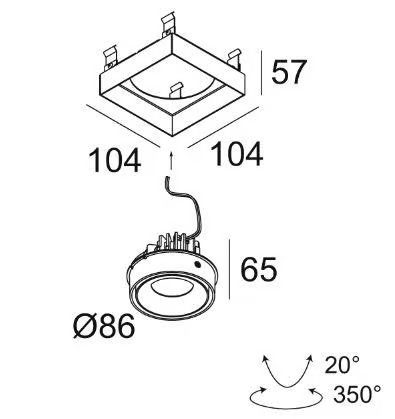

Overall dimensions
Information

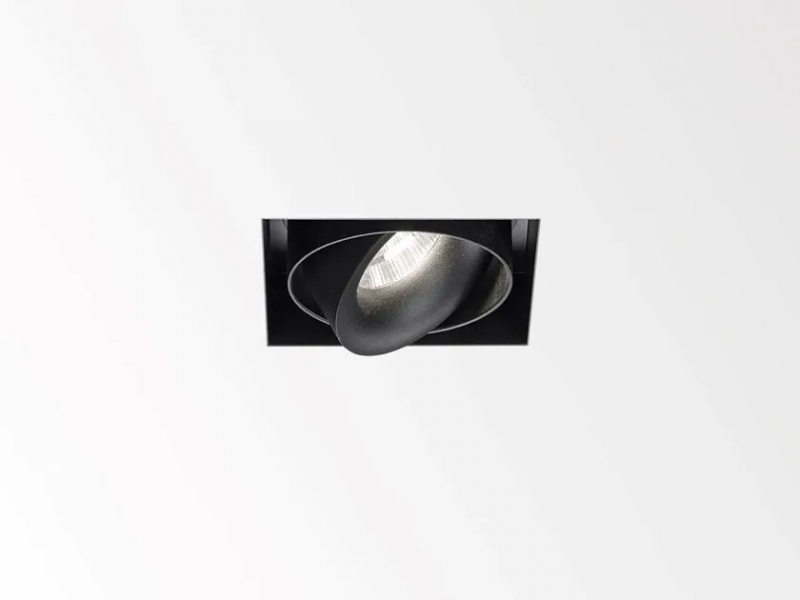

Minigrid In Trimless is a LED square recessed spotlight. Available colors: white, black, black and white.
Technical characteristics
Adjustable 0-20°/350°
9-Soft: 1 x LED 9,5W / CRI>90 / 2700-1800K / 760lm - Reflector FL-33°
92706: 1 x LED 2-4,3W / CRI>90 / 2700K / 201-351lm - Lens SP-6°
92718 / 92733 / 92750: 1 x LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm - Reflector SP-18° / FL-33° / FL-50°
93006: 1 x LED 2-4,3W / CRI>90 / 3000K / 229-400lm - Lens SP-6°
93018 / 93027 / 93050: LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm - Reflector SP-18° / FL-33° / FL-50°
IP23/20
Minigrid stands for clean lines and minimalist design. Theses luminaires can be built into a cove in the ceiling or an optional box can be used as easy installation frame. The Snap-In principle equals modularity and flexibility at its best, it grants the opportunity to the lighting designer to use his creativity: combine single and double units, use multiple beam angles or play with colour. All to use as surface mounted luminaire or as recessed spotlights, both with or without trim. Dividing a luminaire into multiple modular parts not only creates uniformity within one family, it also facilitates the installation by giving the opportunity to the installer to place the frame in advance.
