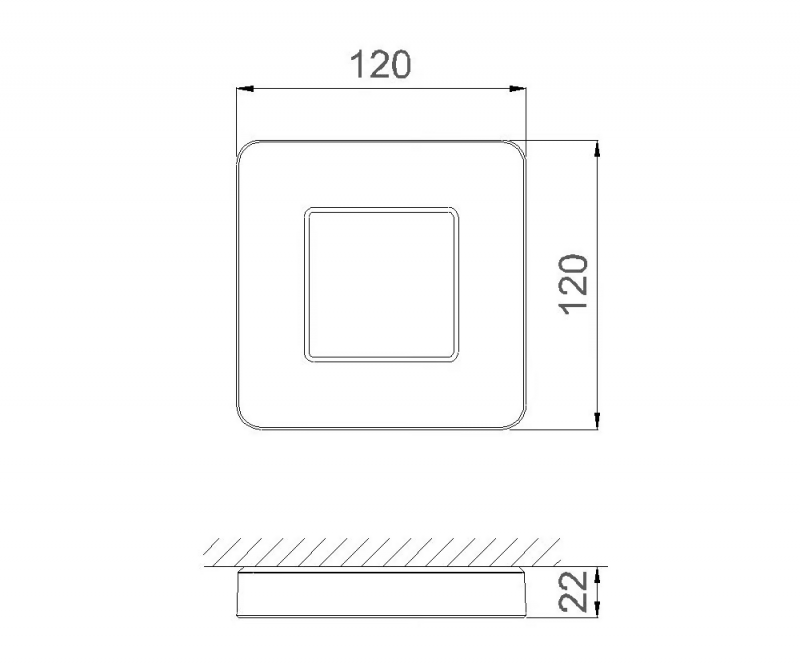

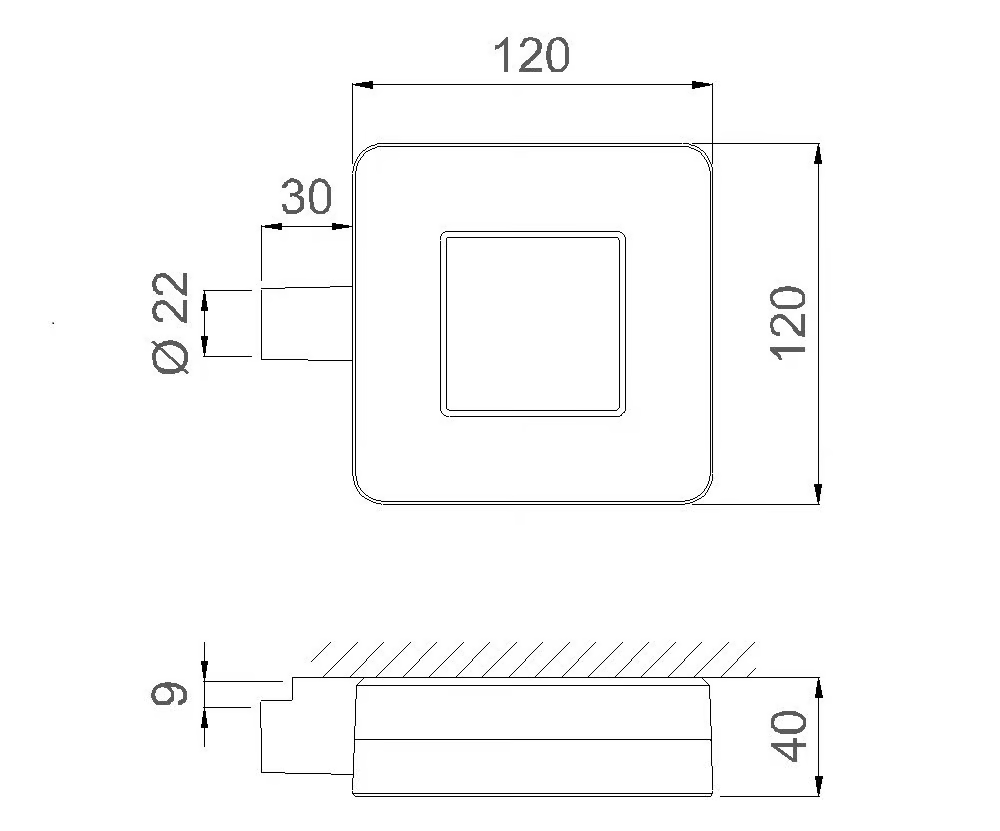

Overall dimensions
Information

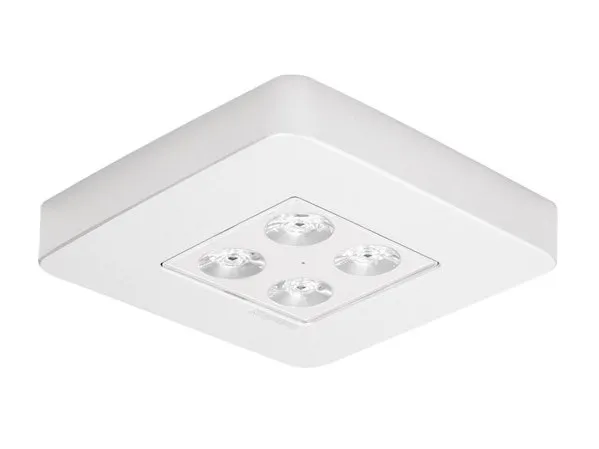

ZINER - Square, extra slim emergency luminaire. The frame, manufactured in aluminium, in addition to the sink is the support for the electronic system, the batteries and the optical group. The combined use of specific lenses and reflectors ensure optimum performance in open area lighting and escape routes. Suitable for ceiling mounting.
Characteristics:
The A and TCA Maintained models have an Eco-permanent function.
Format: Ziner, Ziner + KTS
Operation: Non-maintained and Mantained, AutoTest or TCA
Duration (h): 1, 2, 3
Emergency lamp: MHBLED
Lumens: 170 / 250 Lm
Protection rating: IP43 IK04
Voltage: 220/230V 50/60 Hz, 110/127V 50/60 Hz
Electrical insulation: Type II
Test device: Yes
Remote control connection: Yes
Battery type: LiFePO4
