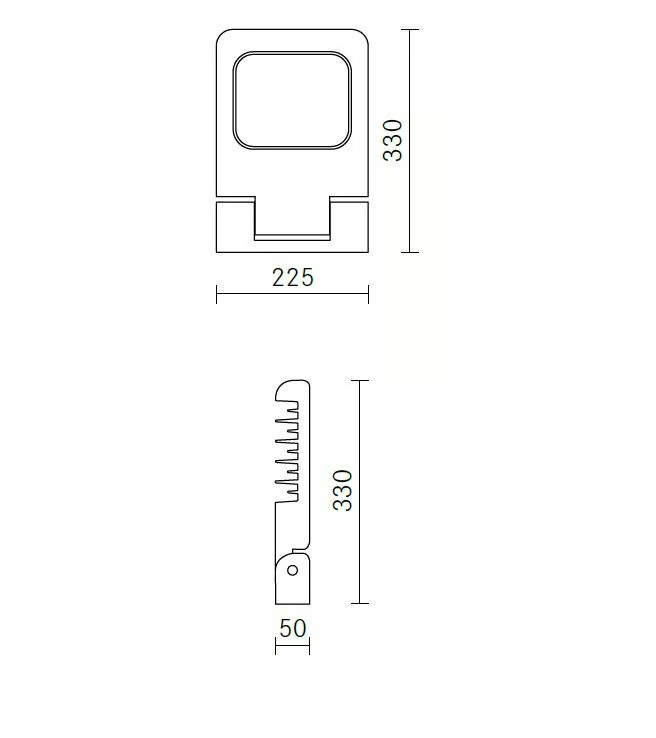

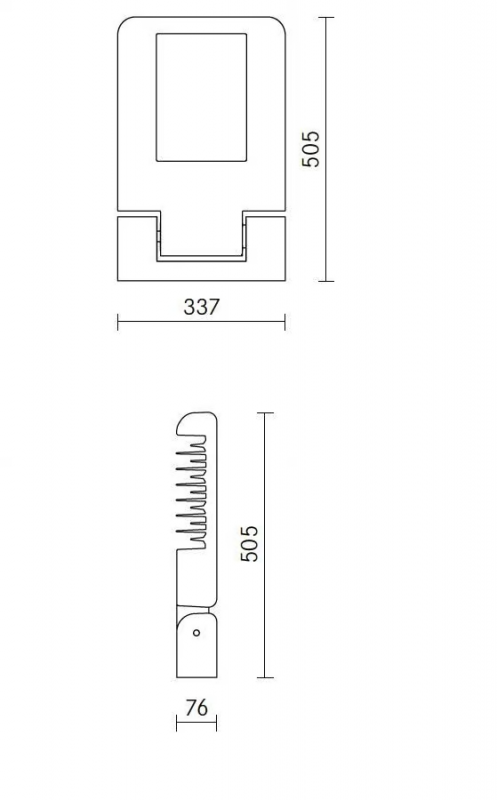

Overall dimensions
Information

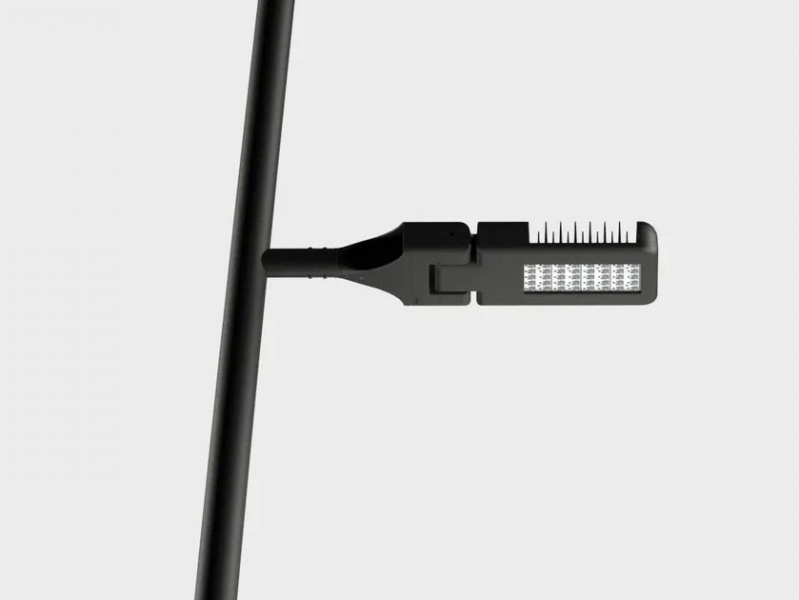

LED luminaire ideal for lighting green areas, roundabouts and cycle and pedestrian paths. Levante can be mounted on Ø 60 or 76 mm poles or arms. Colours: Dark grey sablé 100 Noir, grey RAL9006 and white RAL 9003. Two sizes: small and medium. Integrated electronic control gear. Asymmetric and street type optics are available. Colour temperature: 3000K and 4000K. CRI (Colour Rendering Index): Ra ≥ 70. Programming systems are available for switch on, switch off, and luminous flux reduction for each individual light point. Luminaire with no photobiological risk ( EXEMPT GROUP) in compliance with EN 62471:2008 and the successive IEC/TR 62471:2009. Classification: CUT OFF. Design by Silvio De Ponte.
Nominal voltage 230 V 50 Hz
Insulation class Class II
Protection level IP IP66
Protection against impact IK06
Colour temperature 3000 K, 4000 K
Weight 2.80 kg, 8.00 kg
Labels and Certifications ENEC / CE
Warranty 5 years for LED fittings
