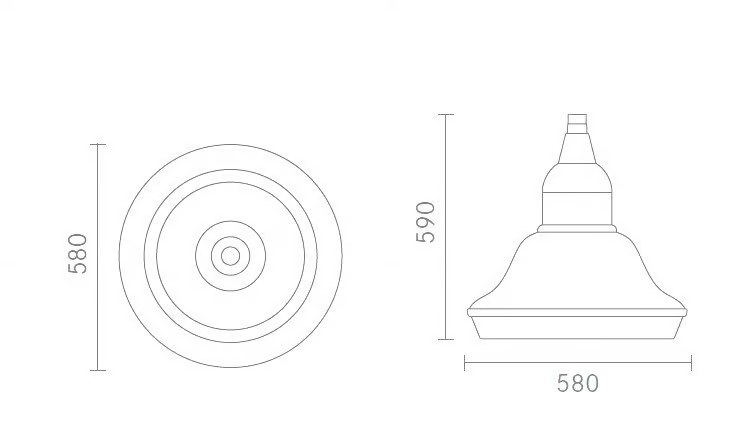

Overall dimensions
Information

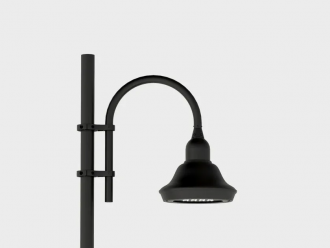

An urban and residential public lighting luminaire featuring a classic design that fits perfectly into city centres and historic settings. It can be installed laterally to a pole (Ø 60-76-102 mm poles) or a wall by means of special arms fitted with a suspension attachment. Colour standard: dark grey Sablé 100 Noir. Optics for lamp versions: cycle path, street and large beam. Optics for LED versions: street LT-M (street width / pole height ratio = 1) and street LT-L (street width / pole height ratio = 1.25). Colour temperature: 3000K and 4000K. CRI (Colour Rendering Index): Ra ≥ 70. Average LED lifetime 80000h@700mA@Ta25°C TM21. Self-learning systems (virtual midnight) with programming options and PLC systems available on request. Luminaire with no photobiological risk (EXEMPT GROUP) in compliance with EN 62471:2008 and the successive IEC/TR 62471:2009. Classification: CUT OFF.
Nominal voltage 230 V 50 Hz
Insulation class Class II
Protection level IP IP66
Protection against impact IK06
Colour temperature 3000 K, 4000 K
Weight 11.00 kg
Labels and Certifications ENEC / CE
Warranty 5 years for LED fittings
