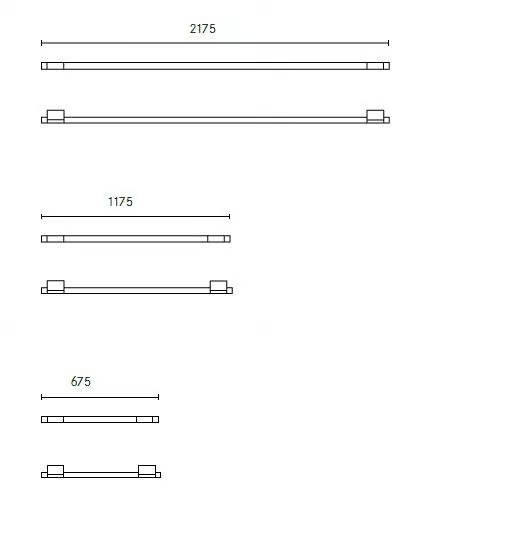

Overall dimensions
Information

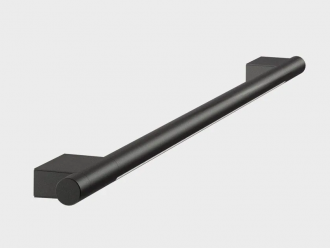

LED luminous handrail and module for illuminating walkways, stairs, corridors and pedestrian bridges. Available in three sizes, 500-1000-2000 mm and in a single module or continuous line version. Option of connecting up to 20 linear metres in a continuous line with only one 150W driver. For banister application, in both a single module and continuous line version, the product is available only with a remote driver, so it is insulation class III. Colour: dark grey Sablé 100 Noir. Symmetrical large beam optics, 360° adjustable with steps of 45°. Colour temperature: 3000K. CRI (Colour Rendering Index): Ra ≥ 80.
Nominal voltage 230 V 50 Hz , 24 V
Insulation class Class II , Class III (Banister)
Protection level IP IP65
Colour temperature 3000 K
Weight 0.45 kg, 0.90 kg, 1.35 kg
Labels and Certifications CE
Warranty 5 years for LED fittings
