Tram

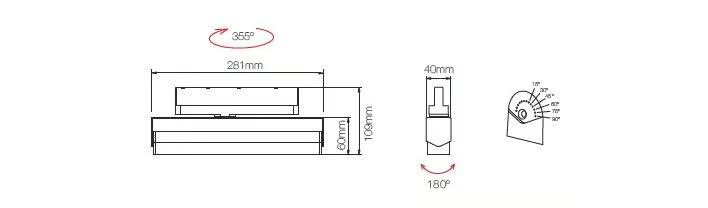

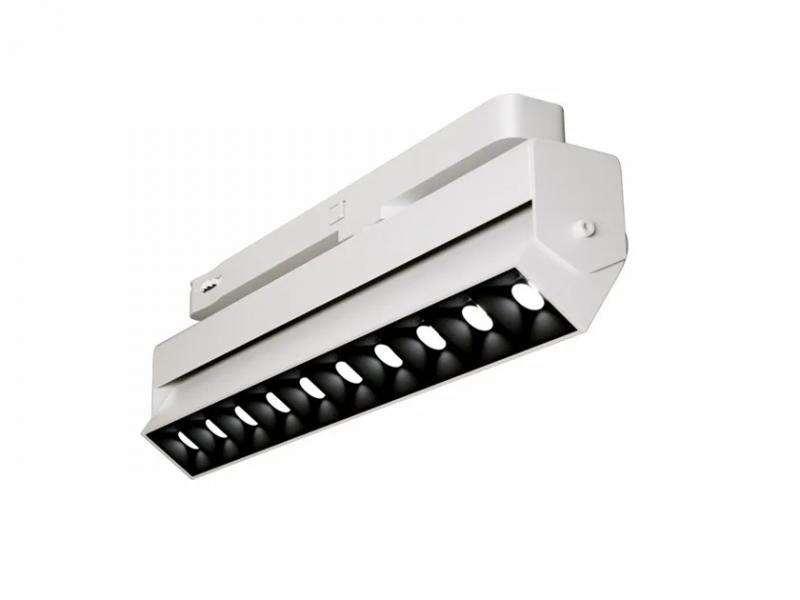

Tram is a track mounted LED spotlight with in-track driver available in 20W and 30W. The product has a rectangula spotlight that rotates 180º with a stop every 15º, with a width of 40mm that oscillates 180º and is made in aluminium. It has a real UGR<19 and 120lm/w and rotates at 355º. Designed for indoor use (IP20) its opening angle is 45º and the color temperatures are 3000K and 4000K. It reaches up to 2400Lm real. Tram 20W - 281 mm TECHNICAL DATA Lumens: 3.000K 2.320 lm - 4.000K 2.400 lm Rated power: 20W Rated voltage: 220-240V Amp: 0,09 Power factor: > 0,9 Hertz: 50/60 Hours of life: 30.000 Maximum and minimum temperature: +45ºC -20ºC Ra: >80 IP: IP20 UGR: <19 REFERENCES 4427: TRAM WHITE LED 20W 45º 3000K TRACK PROJECTOR 4428: TRAM WHITE LED 20W 45º 4000K TRACK PROJECTOR 4429: TRAM BLACK LED 20W 45º 3000K TRACK PROJECTOR 4430: TRAM BLACK LED 20W 45º 4000K TRACK PROJECTOR Tram 30W - 545 mm TECHNICAL DATA Lumens: 3.000K 3.520 lm - 4.000K 3.600 lm Rated power: 30W Rated voltage: 220-240V Amp: 0,14 Power factor: > 0,9 Hertz: 50/60 Hours of life: 30.000 Maximum and minimum temperature: +45ºC -20ºC Ra: >80 IP: IP20 UGR: <19 REFERENCES 4541: TRAM WHITE LED 30W 45º 3000K TRACK PROJECTOR 4542: TRAM WHITE LED 30W 45º 4000K TRACK PROJECTOR 4543: TRAM BLACK LED 30W 45º 3000K TRACK PROJECTOR 4544: TRAM BLACK LED 30W 45º 4000K TRACK PROJECTOR
