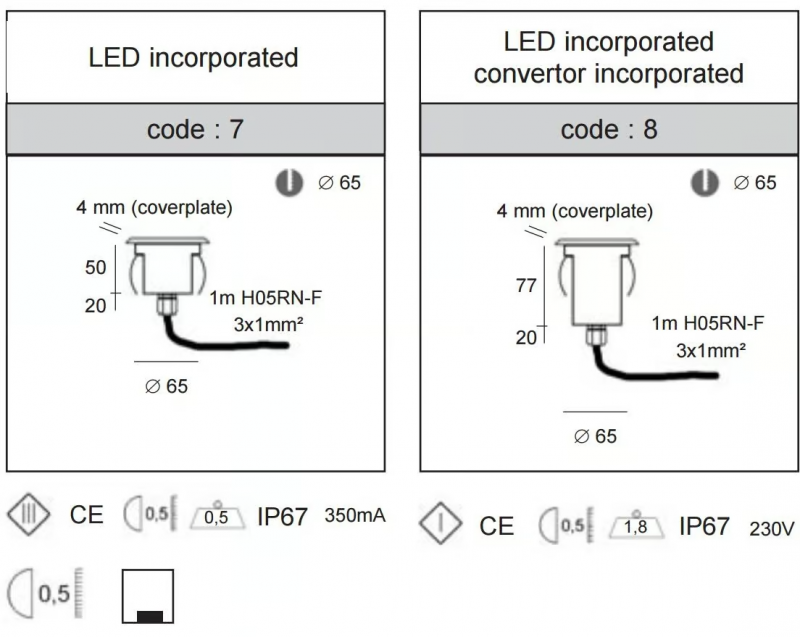

Overall dimensions
Information

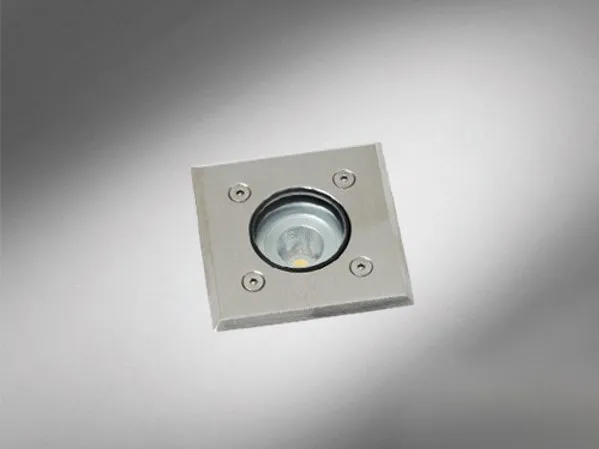

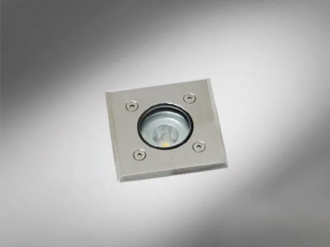

ZAXOR Mini LED | Small waterproof IP67 stainless steel 316L/brass in-ground LED recessed luminaire with square/round cover plate and clear/sandblasted/white glass provided with 1m cable
In-ground luminary to be place indoor or outdoor, it uses the latest LED technology. This fixture is resistant to high pressures, up to 1000kg. Extremely robust construction, this quality luminary is manufactured by machining process. The body is in anodized aluminum and the cover plate in brushed brass or in stainless steel 316L with 4mm thickness. Installed by itself or in groups, this is an attractive solution for many applications.
DESCRIPTION:
Cover plate 4mm in stainless steel 316L
Screws and spring in stainless steel
Safety extra clear or sandblasted glass 10mm thickness
Led module incorporated
Driver 220-240V incorporated (only code 2258)
Max. 2140kg (21000 N)
Degree of protection IP67 - IK10
Provided with 1m cable
Energy class EC: A+
ACCESSORIES:
Recessed box - Pop 4a or Pop 4b
Recessed box - Z-Mini box
Led driver 350mA CC (only code 2257) (not included)
IP68 connection - Connex 2 / Connex 3
Anti-glare honeycomb : Louver ref: X060.021.3
LED:
D14 1,2W - 5000K - 35°
D37 3,2W - 5000K - 45°
D67 6,5W - 5000K - 45°
W14 1,2W - 2700K - 35°
W37 3,2W - 2700K - 45°
W67 6,5W - 2700K - 45°
GLASS:
1 Extra clear glass
2 Sandblasted glass

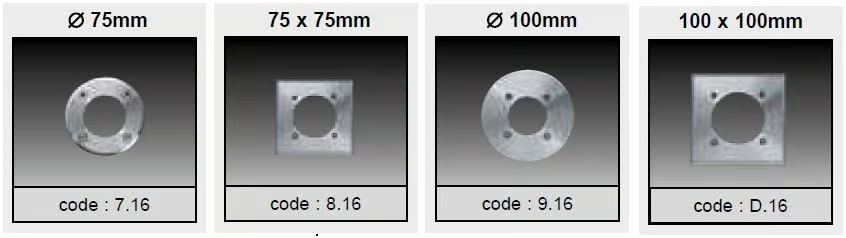

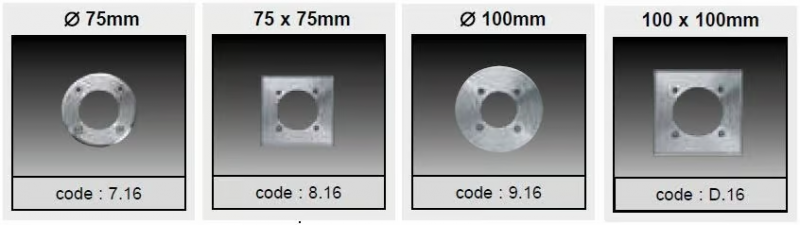

COLOR:
16 Brushed stainless steel 316L
