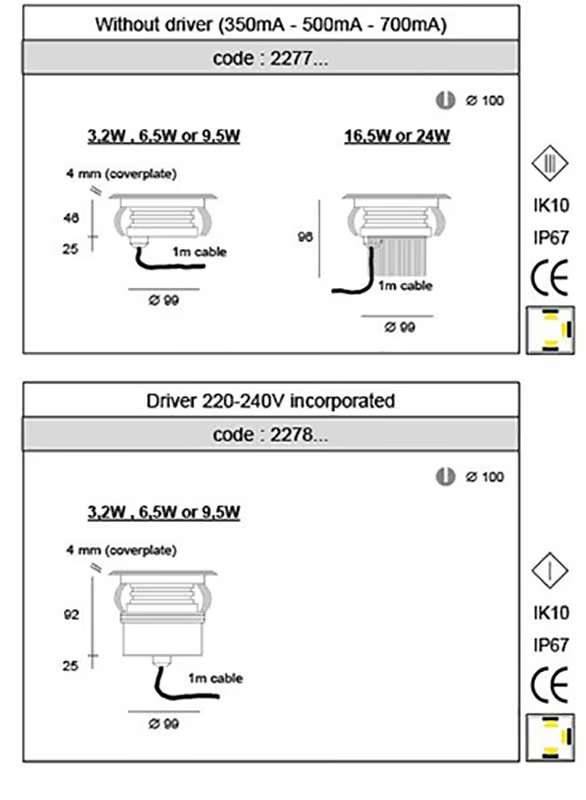

Overall dimensions
Information

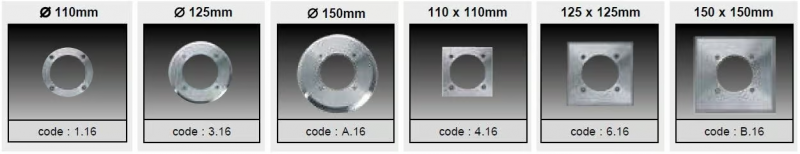

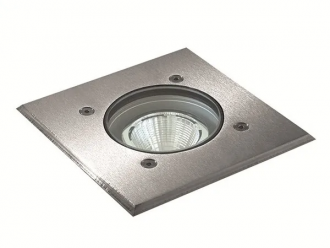

ZAXOR LED | Waterproof IP67 stainless steel 316L in-ground LED recessed luminaire with square/round cover plate and extra clear glass provide with im cable
With the new Zaxor LED, BEL Lighting extends its range of recessed ground spotlights with a powerful and compact model. The recessed depth varies from 7 cm to 12 cm. This luminaire is available with a dimmable power supply integrated 220-240V or without at your convenience and the source is a led with COB technology available from 2700K to 5000K. Made in Belgium, this IK10 exterior luminaire manufactured by machining process is waterproof IP67 and is available with several variants of square or round plates. Zaxor LED is an environmentally friendly luminaire with minimal impact on the environment, it is the reliable and robust solution for many commercial or private projects.
DESCRIPTION:
Body made in solid anodised aluminum
Cover plate 4mm in stainless steel 316L
Screws and spring in stainless steel
Safety extra clear glass 10mm thickness
Led incorporated
Dimmable driver 220-240V incorporated (only code 2278)
Max. 2140kg (21000 N)
Degree of protection IP67 - IK10
Provided with 1m cable
Energy class EC: A+
ACCESSORIES:
Recessed box : Pop 5a or Pop 5b
Led driver CC (only for model 2277)
Driver not needed for 220-240 version, not included for 350mA
IP68 connection : Connex 2 / Connex 3
Anti-glare honeycomb : Louver ref: X060.068.3
LED:
D 5000K
W 2700K
POWER:
0) 3,2W - 350mA
1) 6,5W - 350mA
2) 9,5W - 350mA
3) 16,5W - 500mA
4) 24W - 700mA
ANGLE:
1) 20°
3) 40°
COLOR:
16 Brushed stainless steel 316L
