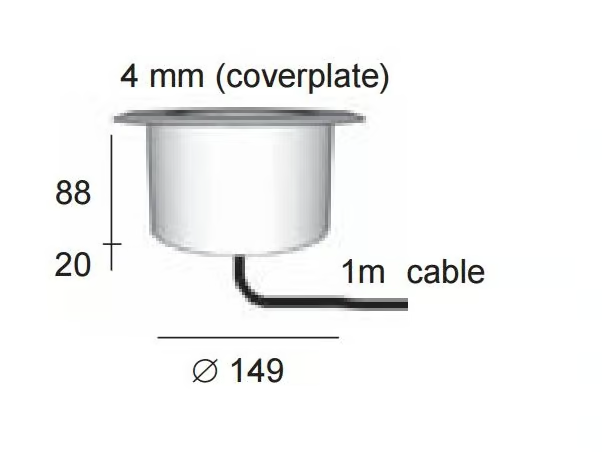

Overall dimensions
Information

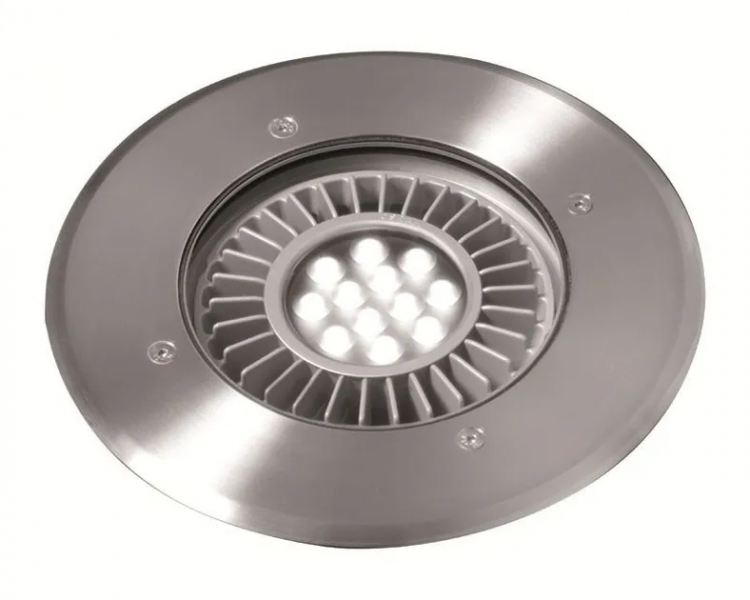

ZAXOR HP LED | Large waterproof IP67 stainless steel 316L/brass in-ground High Power LED/RGB recessed luminaire fixed or orientable/directional with square/round cover plate and clear glass provided with 1m cable
In-ground High Power LED recessed luminaire to be place inside or outside. This fixture resists high pressures, up to 1500kg. Extremely robust construction, this High Power LED spot is available with a fix or adjustable lampholder. This quality luminary is manufactured by machining process. The body is in anodized aluminum and the cover plate in brushed brass or in stainless steel 316L with 4mm thickness.
DESCRIPTION:
Body made in profile anodised aluminum
Cover plate 4mm in stainless steel 316L
Screws in stainless steel
Safety glass 10mm thickness
Led incorporated
Max. 1000kg
Degree of protection IP67 - IK09
Class 1 (230V) or Class 3 (350mA)
Provided with 1m cable
Energy class EC: A
ACCESSORIES:
Recessed box : Pop 6
Led driver RGB: RGBox
Driver not included for the RGB version (350mA,) not necessary for the other versions.
IP68 connection : Connex 2 / Connex 3
LED:
N75 23W 230V - 4000K - 24°
N76 23W 230V - 4000K - 40°
W75 23W 230V - 3000K - 24°
W76 23W 230V - 3000K - 40°
Z75 17W RGB - 350mA - 24°
COLOR:
16 Brushed stainless steel 316L
