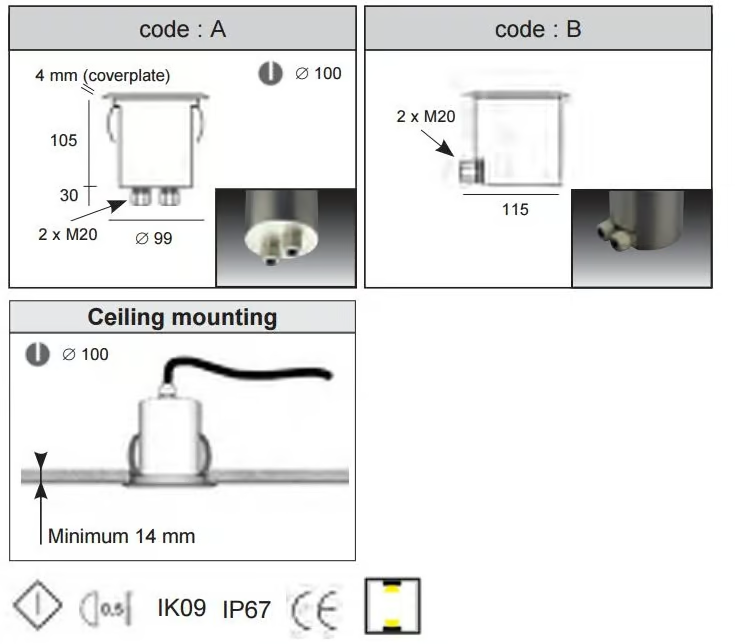

Overall dimensions
Information

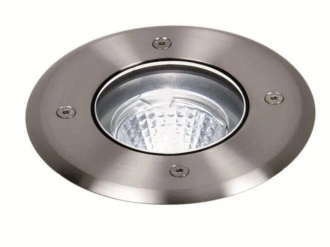

ZAXOR | Waterproof IP67 stainless steel 316L/brass in-ground recessed luminaire fixed or orientable/directional with square/round cover plate and clear/sandblasted glass
In-ground luminary to be place inside or outside. This fixture is resistant to high pressures, up to 1500kg on certain models. Extremely robust construction, this spot can use an LED, halogen, economic fluorescent bulb, with a fix or adjustable lampholder. This quality luminary is manufactured by machining process. The body is in anodized aluminum and the cover plate in brushed brass or in stainless steel 316L with 4mm thickness. Installed by itself or in groups, this is an attractive solution for many applications.
DESCRIPTION:
Body made in solid anodised aluminum
Cover plate 4mm in stainless steel 316L
Safety extra glass 10mm thickness
Screws and spring in stainless steel
Degree of protection IP67 - IK10
Max. 2140kg (21000 N)
Energy class EC: A++/A
ACCESSORIES:
Recessed box - Pop 5a or 5b (only for cable gland A)
Recessed box - Zaxor box (only for cable gland A)
IP68 connection - Connex 2 / 3 / 4
CABLE GLAND:
A on the bottom
B on the side
GLASS:
1 Extra clear glass
2 Sandblasted glass
COLOR:
16 Brushed stainless steel 316L
