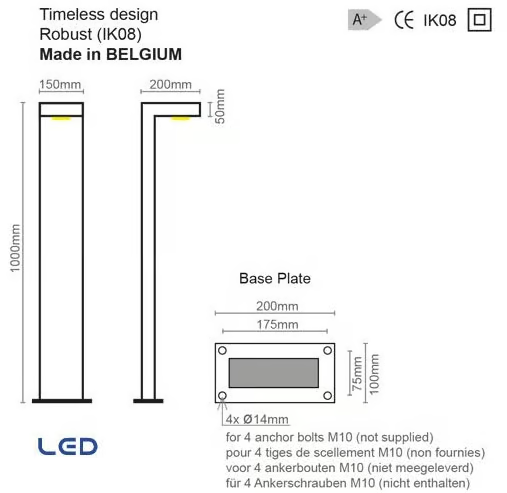

Overall dimensions
Information

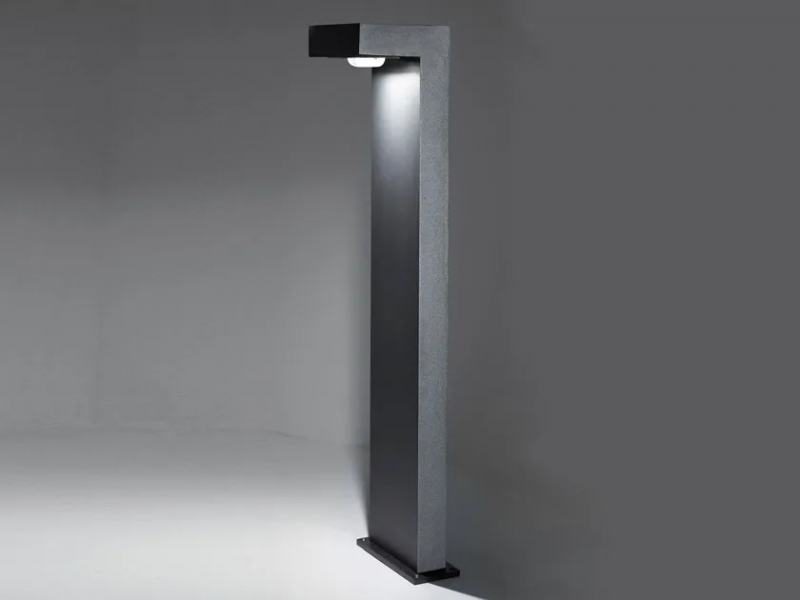

SAMPA PRO | Economic bollard with anti-glare lighting and asymmetrical lens at very wide lighting distribution IP65 IK08
SAMPA PRO+ | Energy saving bollard with presence detector and anti-glare lighting with asymmetrical lens at very wide lighting distribution IP65 IK08
Available with or without presence detector, for an average interdistance installation of +/- 6m, it is an interesting and economical solution for many outdoor installations. Its high level of protection against vandalism and its anti-glare lighting with asymmetrical lens makes it the ideal choice to put the value in sites without disturbing the lines. Sampa PRO is a sober bollard with timeless design that would be particularly suit your urban and architectural projects.

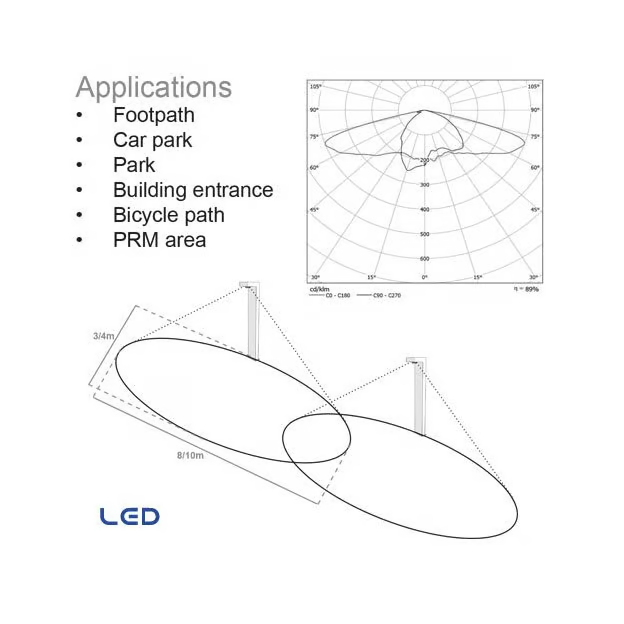

Applications
• Footpath
• Car park
• Park
• Building entrance
• Bicycle path
• PRM area
Advantages +
• Timeless design & robust (IK08)
• Lighting level conforms to PRM standards
• Also available with presence detector for:
- significant energy savings
- a reduction of light pollution
- a convenient and secure function to the site
- an extension to the LED lifetime
DESCRIPTION:
Body made in profile aluminum
Screws in stainless steel
Asymmetrical silicone lens anti-UV, efficiency 89%
Mechanical strength of the luminaire: IK08
Degree of protection IP65
Led driver 230V & led incorporated
Energy class EC: A+
Sampa PRO+ Technical characteristics
• Fixing bracket for the detector in solid aluminum
• Presence detector (around 8m) with presetting:
- standby function with orientation lighting of 10%
- timer 60 seconds
- Twilight function at 200 lux
ACCESSORIES:
IP68 connection - Connex 2 / 4 / 6
LED:
N1 6,5W - 4000K
N2 9,5W - 4000K
N3 15W - 4000K
W1 6,5W - 3000K
W2 9,5W - 3000K
W3 15W - 3000K
COLOR:
02 Black
24 Corten
39 Grey
48 Dark Grey (RAL 7016 structured)
