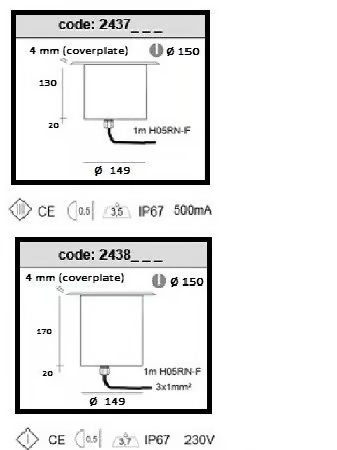

Overall dimensions
Information

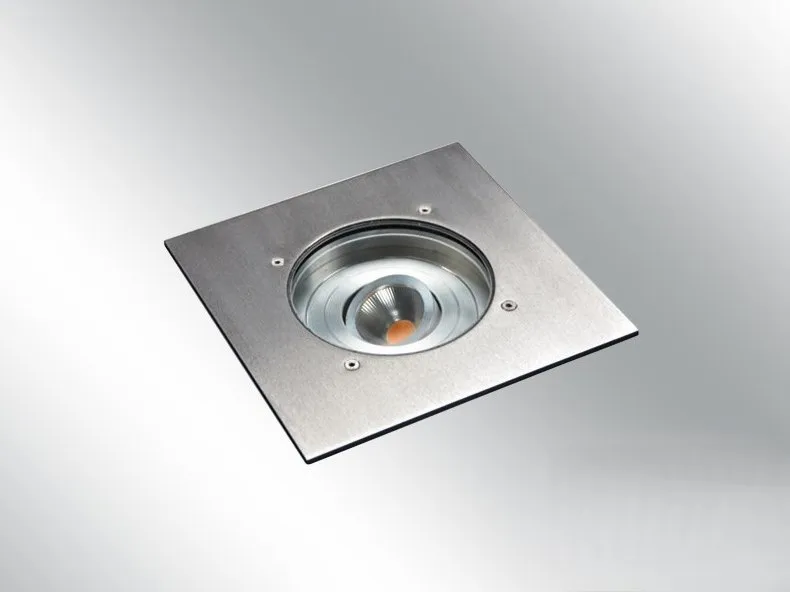

BOLAS-O HPL | in-ground High Power LED recessed luminaire orientable/directional waterproof IP67 in stainless steel 316L or brass with square/round cover plate, provided with 1m cable
In-ground luminaire to be place inside or outside. This fixture resists high pressures, up to 1000kg. Extremely robust construction, this High Power LED spot is available with adjustable lampholder. This quality luminary is manufactured by machining process. The body is in anodized aluminum and the cover plate in brushed brass or in stainless steel 316L with 4mm thickness.
DESCRIPTION:
Body made in profile anodised aluminum
Cover plate 4mm in stainless steel 316L
Degree of protection IP67 - IK09
Safety clear glass 10mm thickness
Led incorporated
Driver 220-240V incorporated (only code 2438)
Provided with 1m cable
Max. 1000kg
Energy class EC: A+
ACCESSORIES:
Recessed box : Pop 6
Led driver 350mA or 500mA CC (only code 2437) (not included)
Anti-glare honeycomb : Louver ref: X060.050.3
IP68 connection : Connex 2 / Connex 3
LED:
D1 9,5W - 5000K
D2 16,5W - 5000K
W1 9,5W - 2700K
W2 16,5W - 2700K
ANGLE:
1) 20°
3) 40°
COLOR:
16 Brushed stainless steel 316L
