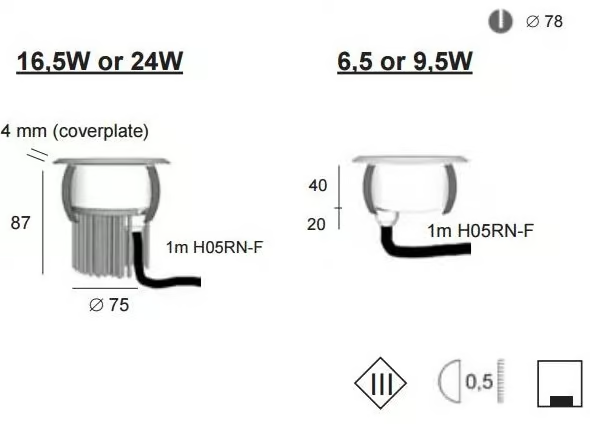

Overall dimensions
Information
BOLAS HP Led | Waterproof IP68 stainless steel 316L/copper in-ground High Power LED recessed/underwater luminaire with square/round cover plate and clear glass provided with Different Angles of Light Diffusion and 1m cable
Submersible projector to be recessed into the ground inside or outside using the latest high power LED technology. Symmetrical light distribution with several powers and diffusion angles available. It is a robust construction in anodized aluminum body a cover plate in Copper or 316L stainless steel with 4mm thick. HPL Bolas combines high efficiency and long life and luminosity comparable to halogen bulbs. Installed individually or in groups, it is an attractive solution for many facilities in the private or public sector.
DESCRIPTION:
Body made in solid anodised aluminum
Cover plate 4mm in stainless steel 316L or copper
Screws and spring in stainless steel
Safety extra clear glass 10mm thickness
Degree of protection IP68, water depth up to 1m
Led 350 or 500mA incorporated
Provided with 1m cable
Max. 2140kg (21000 N)
Energy class EC: A+
ACCESSORIES:
Recessed box : Pop 8a or Pop 8b
Led driver 350 or 500mA CC (not included)
IP68 connection : Connex 2 / Connex 3
Anti-glare honeycomb : Louver ref: X060.043.3
LED:
D 5000K
W 2700K
POWER:
0) 6,5W 350mA
1) 9,5W 350mA
2) 16,5W 500mA
ANGLE:
1) 20°
3) 40°
COLOR:
16 Brushed stainless steel 316L
21 Copper
