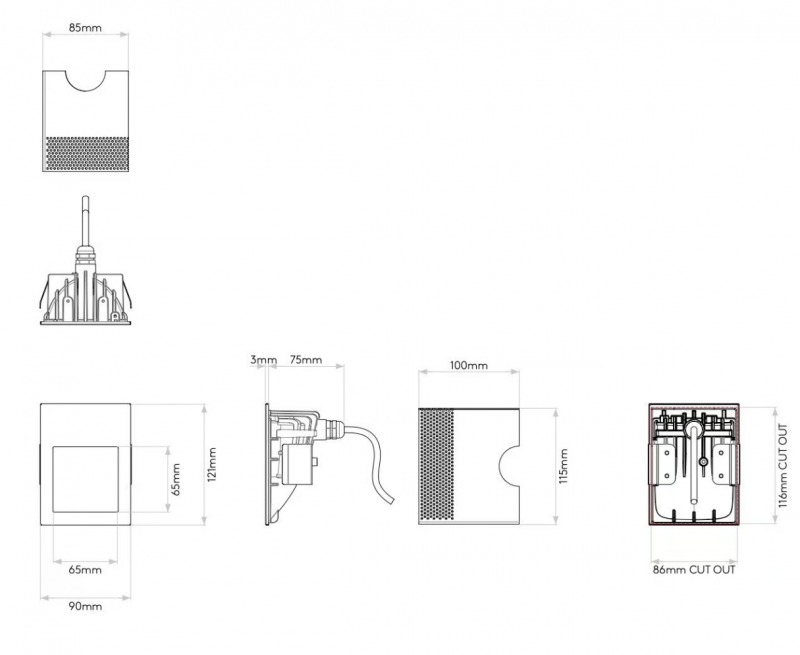

Overall dimensions
Information
The Astro Borgo 90 LED in matt white is a contemporary indoor marker light featuring integrated LEDs for optimum efficiency and ease of maintenance. This low level marker light provides a pool of warm light in a downwards direction. The Borgo must be recessed and can be used in multiples to illuminate a staircase or along the length of a hallway to add interest. Made from highly rust resistant stainless steel, the Borgo is a durable, high quality product supplied with Astro's 3 year guarantee. The Borgo requires a 700mA constant current driver to operate and is dimmable depending on the chosen control gear. Consult with a qualified electrician before attempting installation. A cut-out of 102 x 84mm and recess depth of 42mm is required. An IP20 rating makes the Borgo suitable for indoor use only. This marker light is Class III - Low Voltage for your safety.
Borgo 90 LED 3000K:
Finish: Brushed Stainless Steel (1212006), Matt White (1212004), Polished Stainless Steel (1212005)
Uses a 2W LED. 3000K.
IP20 rated, suitable for bathroom zone 3.
Class III, low voltage.
Requires a 700mA constant current LED driver.
Borgo 90 LED 2700K:
Finish: Brushed Stainless Steel (1212026), Matt White (1212024), Polished Stainless Steel (1212025)
Uses a 2W LED. 2700K.
IP20 rated, suitable for bathroom zone 3.
Class III, low voltage.
Requires a 700mA constant current LED driver.
Borgo 90 LED MV:
Finish: Brushed Stainless Steel (1212047), Matt White (1212048), Polished Stainless Steel (1212046), Textured Black (1212051), Textured White (1212052)
Uses a 4.1W LED. 3000K.
IP65 rated, suitable for bathroom zones 1, 2, and 3.
Class I.
Borgo 90 LED:
Bathroom marker light.
Polished Stainless Steel finish (1212009)
Uses a 2W LED. 3000K.
IP65 rated, suitable for bathroom zones 1, 2, and 3.
Class III, low voltage.
Requires a 700mA constant current LED driver.
Borgo 90 LED Exterior light:
Finish: Textured Black (1212051), Textured White (1212052)
Uses a 4.1W LED. 3000K.
IP65 rated, suitable for bathroom zones 1, 2, and 3.
Class I.
