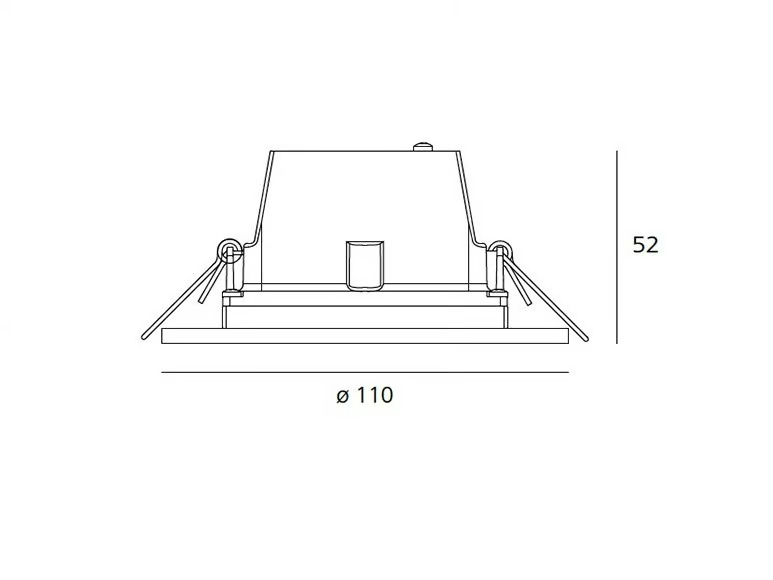

Overall dimensions
Information
Zeno Up Frosted is a light fixture with high-performance LED light sources. Consists of: frame, body, fixing springs. Frame in frosted opal glass, 4mm thick. Body in injection mould of aluminium. Fixing springs in harmonic steel. Electrical connection to the driver by means of a FROR cable and a terminal board. Technical features of light fixtures in compliance with EN60598-1.
FEATURES
Installation: CeilingRecessed
Watt: 5W / 10W
Delivered lumens output: 138lm / 464lm
CCT: 3000K
Efficiency: 36% / 60%
Efficacy: 28.75lm/W / 46.4lm/W
CRI: 80
SOURCES INCLUDED (Zeno Up 3 Frosted)
Category: Led
Number: 1
Watt: 5W
Delivered lumens output: 384lm
Color temperature (K): 3000K
CRI: =80
Color Tolerance: MacAdam 4SDCM
Efficacy: 80lm/W
Service Life: L70(6K) > 39300h
SOURCES INCLUDED (Zeno Up 4 Frosted)
Category: Led
Number: 1
Watt: 10W
Color temperature (K): 3000K
