Zeno up
ICB-67444
Прожектор
2020

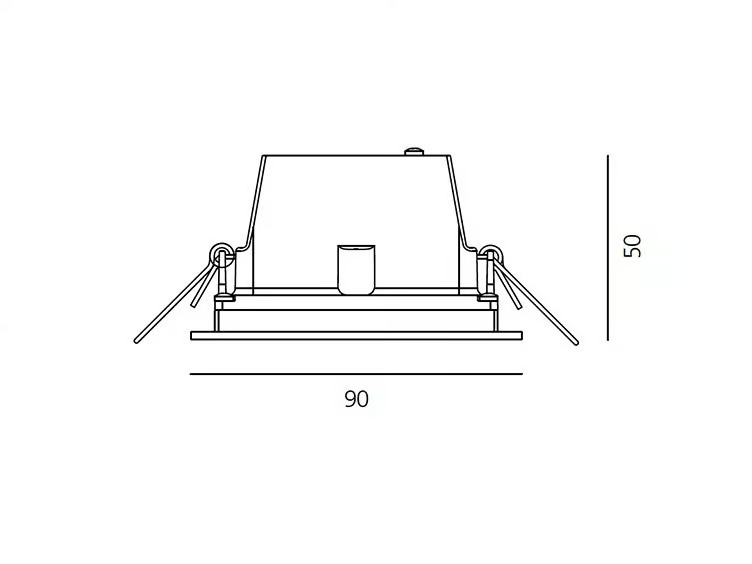

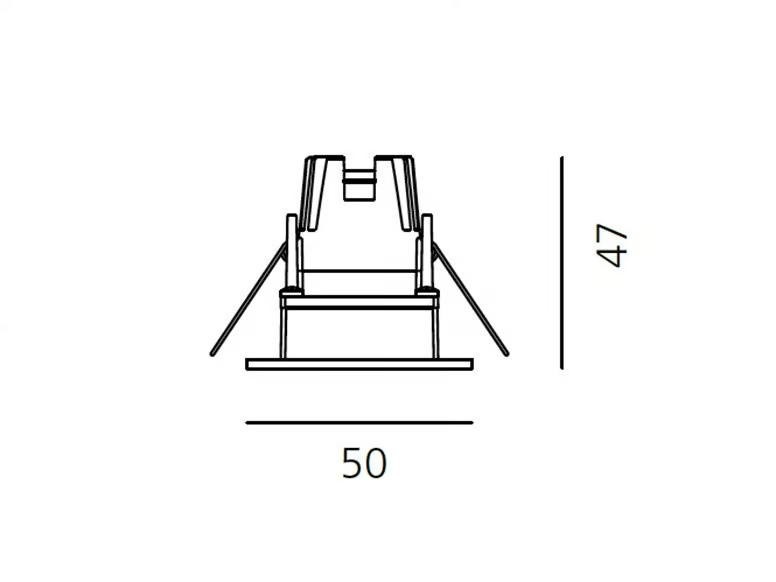

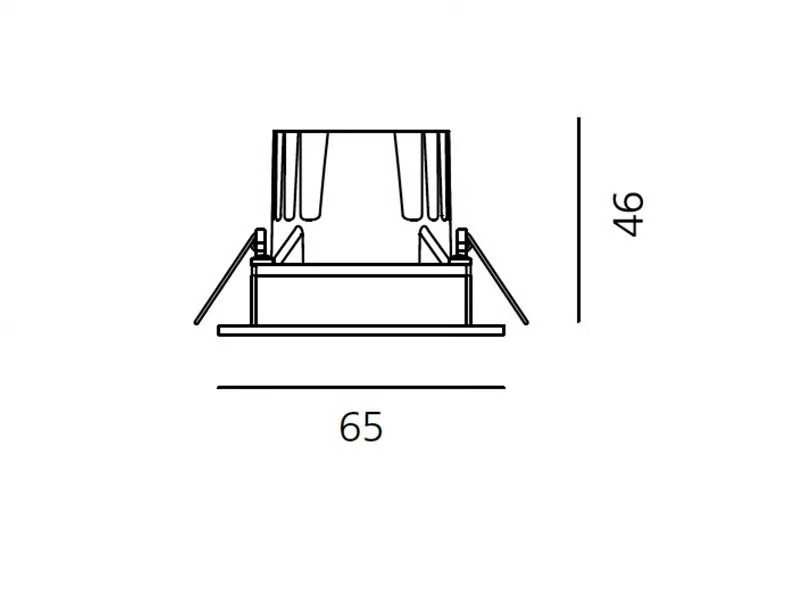

Zeno Up2: 5 x 5 cm; Zeno Up3: 6,5 x 6,5 cm; Zeno Up4: 9 x 9 cm
Overall dimensions
Information

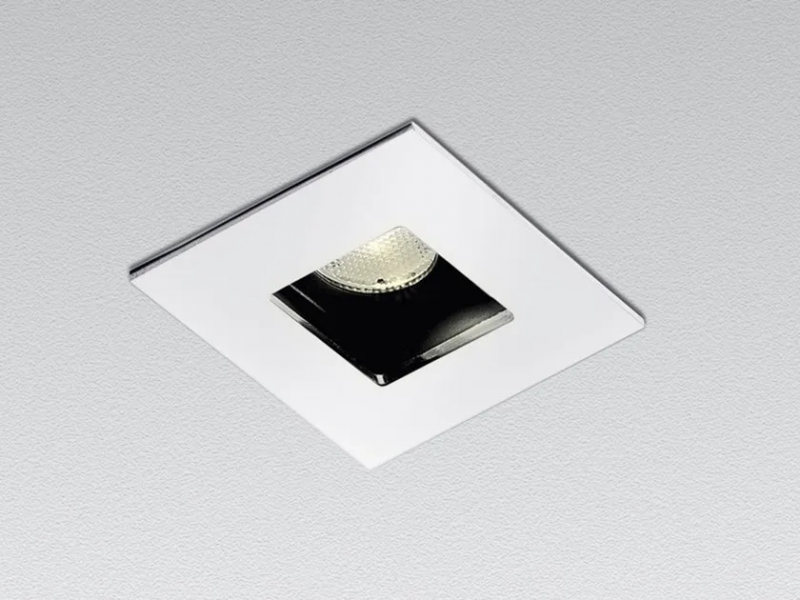

Zeno Up is a light fixture with high-performance LED light sources. Low recessed depth. Consists of: body, frame, black silkscreened tempered glass, fixing springs. Body in EN AB44100 aluminium, silicone gaskets. Frame in aluminium. Black silkscreened tempered glass, 4mm-thick. Fixing springs in harmonic steel. Power connection to the mains by means of a H05RN-r cable and IP68 electrical terminal board, supplied with the fixture. Glass surface temperature lower than 40°C. Fixed optics. PMMA lenses in 2 different versions of beams. Painted die-cast aluminium with 3-stage outdoor treatment: nanotechnologies, antioxydant primer, polyester paint.
Technical features of light fixtures in compliance with EN60598-1.
FEATURES
Colour: White / Crome / Silver
Installation: CeilingRecessed
Watt: 2W / 5W / 6.5W
Delivered lumens output: 192lm / 206lm / 269lm / 280lm / 364lm / 376lm
CCT: 3000K
Efficiency: 73% / 78% / 70% / 72%
Efficacy: 96.21lm/W / 102.92lm/W / 56.04lm/W / 58.33lm/W / 57.78lm/W / 59.68lm/W
CRI: 80
Beam:
11°/ 27° (Zeno Up 2)
16° / 24° (Zeno Up 3)
10° / 30° (Zeno Up 4)
SOURCES INCLUDED
Category: Led
Number: 1
Watt: 2W
Delivered lumens output: 168lm / 384lm
Color temperature (K): 3000K
CRI: 80
Color Tolerance: MacAdam 4SDCM
Efficacy: 80lm/W
Service Life: L70(6K) > 36300h / 39300h
