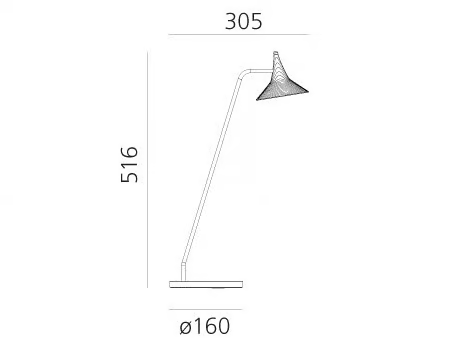

Overall dimensions
Information

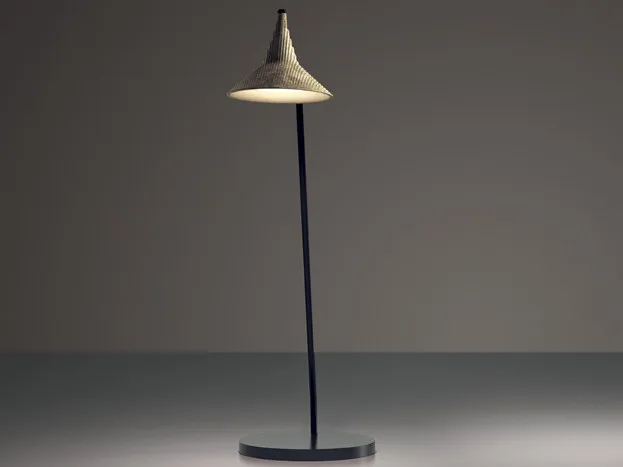

Unterlinden is a brass LED table lamp. Available in 2770K and 3000K versions.
FEATURES
Article Code: 1946010A / 1946W10A
Colour: Brass
Installation: Table
Material: Brass
Watt: 9W
Voltage: 24V
Delivered lumens output: 349lm / 339lm
CCT: 3000K / 2700K
Efficiency: 52%
Efficacy: 38.78lm/W / 37.67lm/W
CRI: 90
Dimmer Typology: Microswitch Dimmer
IP: IP20
SOURCES INCLUDED
Category: Led
Number: 1
Watt: 6.2W
Delivered lumens output: 584lm / 570lm
Color temperature (K): 3000K / 2700K
CRI: 90
Color Tolerance: MacAdam 3SDCM
Efficacy: 94lm/W / 92lm/W
Service Life: 50000-L70
The design partnership with Herzog & de Meuron continues to follow the development of their architectural designs, which often offer opportunities to think about developing new lighting solutions. In multiple projects designed with the firm Herzog & de Meuron, including the Feltrinelli Foundation in Milan as the latest, the suspension appliance Unterlinden has conveyed its versatility through a variety of special versions. These include Unterlinden table, a new entry in the catalogue. It is a table lamp with a thin metal stem that allows to set the head in the perfect position to ensure excellent, non-glaring illumination of the working area.
The Unterlinden family has been expanded with new versions based on its characteristic head. The lamp body in die-cast aluminum or brass features a different finish each time given by the natural oxidation process of the metal which is halted and fixed by means of a clear finish. A high-efficiency precision lens controls the LED light, generating professional illuminance levels. Unterlinden free chandelier consists of five suspension elements which all lead to a single central point. The 2.5 meter- long cables can be arranged freely to create compositions that follow different layouts. In Unterlinden ring chandelier, the position of the suspended elements is determined by a circular frame which distributes them along the perimeter. The original small Unterlinden bronze or aluminum element is the basis for a wall lamp version, a table lamp version and two clusters. In the floor lamp version, a volume supporting the slim arm is attached to the main rod. As it turns, the arm allows you to direct the head. The cable can be adjusted to vary the height of the lighting body thanks to a counterweight. In the wall lamp the arm can rotate and the length of the suspension cable is adjustable.
