Spike
ICB-85738
Настенный/потолочный светильник / Открытый потолочные светильники
2020
SPIKE RGB; Length: 78 cm; Height: 4.2 cm; Base Diameter: 3.5 cm; ; SPIKE LED; Length: 26.4 cm; Height: 4.2 cm; Base Diameter: 3.5 cm

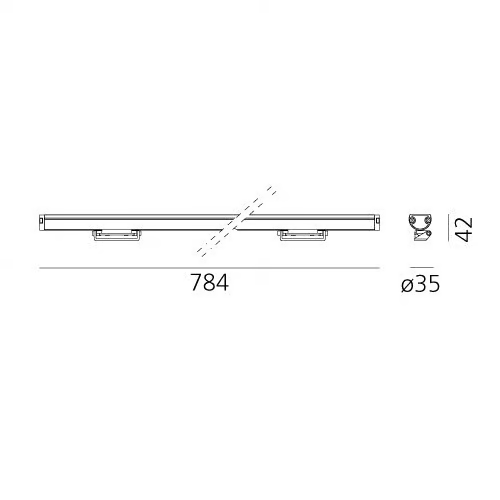

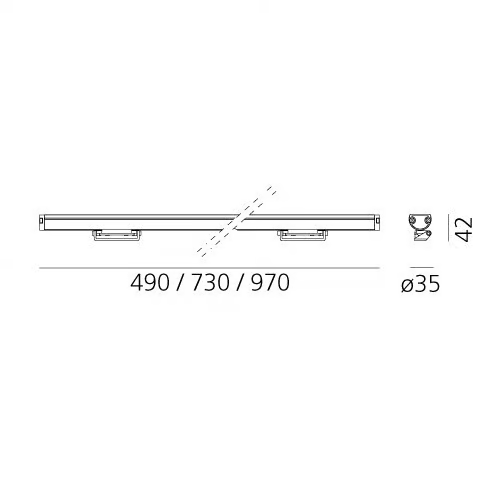

Overall dimensions
Information
Spike is a light fixture with high-performance LED light sources.Wall/ceiling installation. Monochromatic version or RGB version.Body in extruded EN AW6060 T5 aluminium.Diffuser in 3mm-thick transparent tempered glass.Diffuser in 1,5mm-thick transparent polycarbonate.Stoppers in die-cast aluminium with silicone gasket.Adjustable brackets in aluminium. Electrical connection to the ballast by means of a H05RN-F (monochrome) or a 4-poles sylicon/rubber cable (RGB), with IP68 terminal board supplied with the fixture (IP65 version).24Vdc remote ballast.Painted profile with 2-stage outdoor treatment: primer, outdoor paint.Antidazzle screen in painted extruded aluminium, upon request.Optics. PMMA lenses in 3 different versions of beams. White monochromatic LEDs available in 2 colour temperatures:Warm = 3000KNeutral = 4000KRGB version with red, green and blue monochromatic LEDs.IP Rating IP65. Insulation class III.Technical features of light fixtures in compliance with EN60598-1.Installation must be carried out by specialized personnel.
Light source
LED Spike / RGB Spike
Light Beam Angle
10° / 19° / 25° / 31° / 40° / EL / 18x40° / 18x40
Length
26,8 cm / 49 cm / 73 cm / 78,4 cm / 97 cm
Power (W)
12W / 24W / 25,2W / 36W / 48W
Luminous flux (Lm)
1054lm / 1080lm / 1959lm / 2109lm / 2160lm / 2939lm / 3163lm / 3239lm / 3919lm / 4218lm / 4319lm / 980lm
IP65
