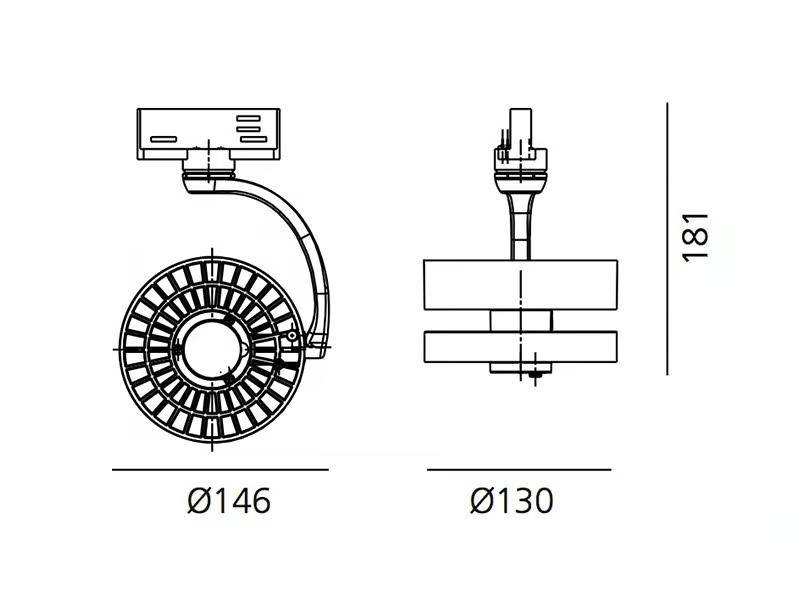

Overall dimensions
Information
Cata Tunable White is a LED aluminium track-Light.
FEATURES
Colour: Polished aluminium
Installation: Track
Watt: 23W
Delivered lumens output: 404lm
CCT: 2900K
Efficiency: 30%
Efficacy: 17.55lm/W
CRI: 90
Dimmable Typology: Dali
SOURCES INCLUDED
Category: Led TW
Number: 1
Watt: 22W
Color temperature (K): 2700-5700
CRI: >93 (min.)
Color Tolerance: MacAdam 2SDCM
Service Life: L70 (6K) 50000h

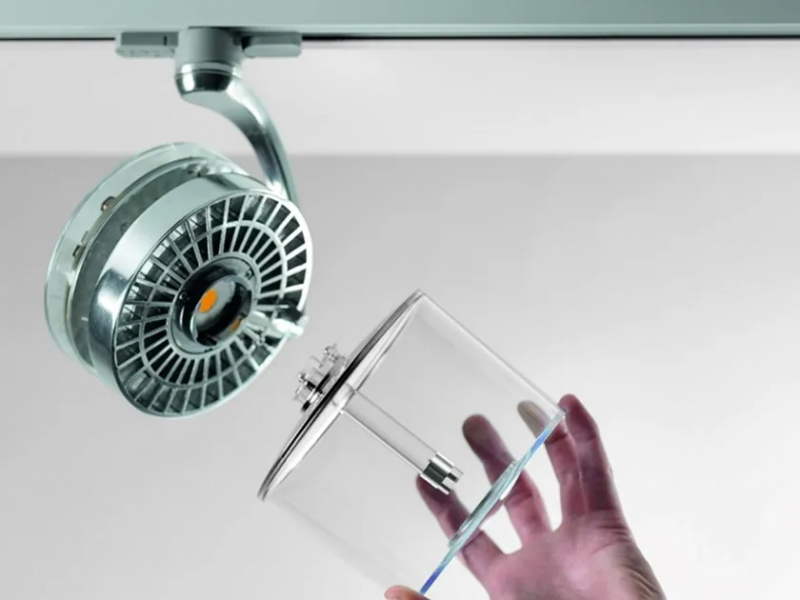

Interchangeable optical unit through a ‘twist & lock’ mechanism. Defined, concentrated light beams thanks to an innovative collimation system. 2 beam angles: 2x3,5°, 2x8°. Excellent quality of light: Cata Tuneable White: adjustable colour temperature from 2700K to 5700K CRI >93 (min.) Cata Stable White: available as warm white (3000K) and neutral white (4000K) – CRI=80 (min.). Rotation of 360°, tilt angle of +90°/-90° 2 installation options: with adaptor for 3-circuit track, or base plate for ceiling mounting. Ultra-flat power source (8mm height): DALI dimmable as standard, DALI8 interface hub for Tuneable White version. Materials : optic in transparent and metallic polycarbonate, heat sink in die-cast gloss aluminium, feeder/power supply in transparent polycarbonate, arm in die-cast gloss aluminium. Complies with standard EN60598.
