Information

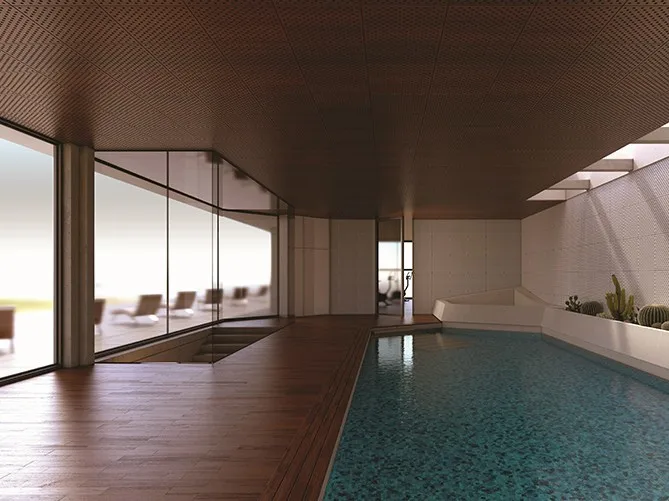

Ceilings have found their most natural finish.
Listen Square offers the opportunity to use the ceiling to reduce echo and reverberation, so as to enhance and optimise a room’s visual impact and acoustic performance, without changing the walls.
Listen is made in MDF. The raw material used includes many types of wood.
DATA SHEET
16 mm thick MDF panel melamine, wood, lacquer or flocked finish for wall installation with Variofix system.
MDF panel density: 760 kg/m3 (EN 323)
Formaldehyde: class E1 (EN 120)
ON REQUEST
Reaction to fire (EN 13501-1)
Certification EC (B–s2, d0)
FIREPROOF paint in class 1
F**** JIS standard –
low formaldehyde emissions
TYPES
SMOOTH
MICRO PERFORATED
Micro hole D. 1.2 mm
PERFORATED
Hole D. 3 mm, 16 mm pitch, parallel holes
Hole D. 3 mm, 32 mm pitch, parallel holes
Hole D. 3 mm, 32 mm pitch, staggered holes
Hole D. 5 mm, 16 mm pitch, parallel holes
Hole D. 8 mm, 32 mm pitch, staggered holes
Hole D. 10 mm, 32 mm pitch, parallel holes
Hole D. 20 mm, 64 mm pitch, parallel holes
MILLING
Same finishes as SLATTED LISTEN panels
(8/3 , 17/4 , 18/3, 19/2, 40/2)
MOUNTING SYSTEM
Wall and ceiling VARIOFIX, T24 and SILHOUETTE
SIZE
600 x 600 x 16 mm
1200 x 600 x 16 mm
