Information
The trendy diamond-shaped panel recalls the lines of a tile size that was widely popular in the early 20th century. Its special faceted design aids sound absorption while controlling refraction. Very light and easy to install, Airsquare is upholstered in fabric combined with the fibre by a special thermoforming process and available in the same colours as Airform.
Air square contains a percentage of recycled material (PET).
DOVE E COME

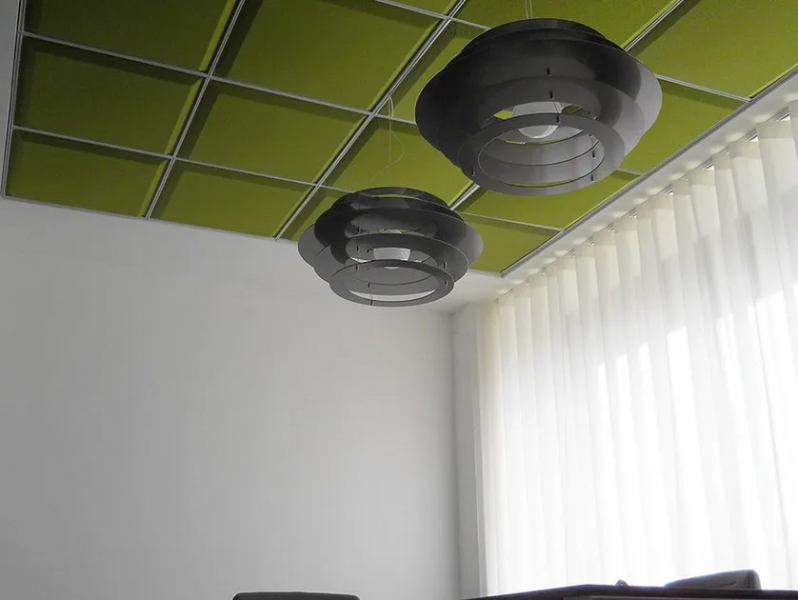

Easy to install on the broadest range of structures, Airsquare aids the replacement of existing false ceilings or the creation of new ones using the T24 or Silhouette structure. It is ideal for environments that require a good acoustic insulation solution that also expresses a distinct style. Once installed, it is easy to remove for the maintenance of any underlying cables.
DATA SHEET
100% polyester fibre modular panel for heat and sound insulation, 10 mm thick, with a maximal thickness of 50 mm.
Sound absorption coefficient: (UNI EN ISO 354, UNI EN ISO 11654)
αw=0.75 (installation at a distance of 50 cm from ceiling/wall)
Reaction to fire: B s1 d0 (EN 13964)
MOUNTING SYSTEM
T24 and SILHOUETTE ceiling grid.
SIZE
Square:
600 x 600 x 50 mm
