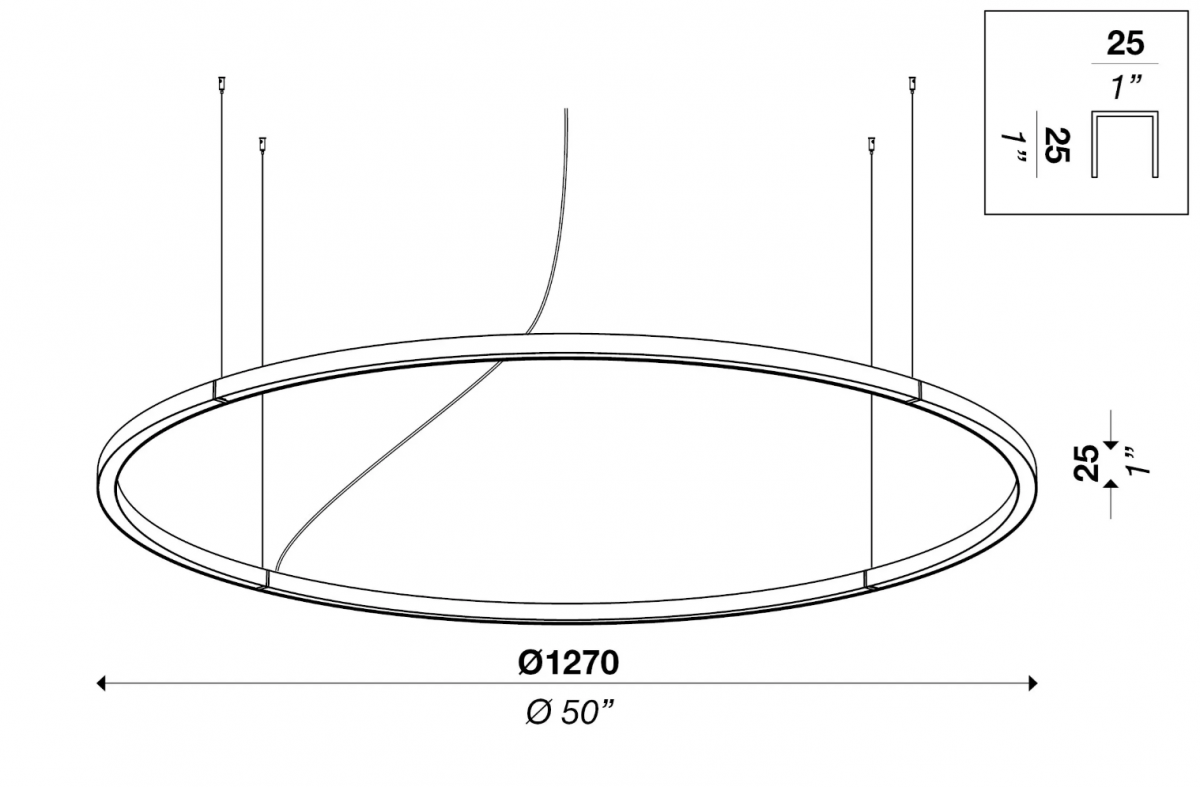

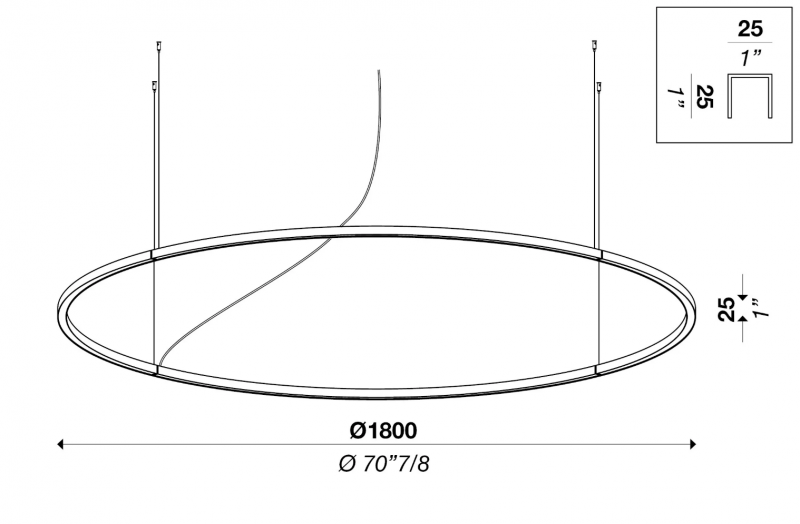

Overall dimensions
Information

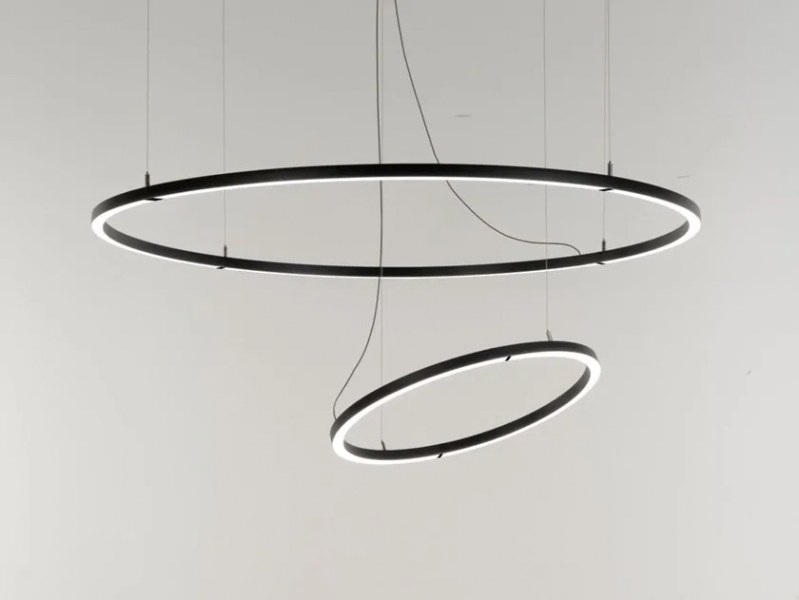

Daytona Round is a lighting modular system with direct light, hanging and ceiling lamps connectable together or available in a standalone configuration. Aluminium structure white, black or brass coated.
Linear profiles with opal polycarbonate or darklight optic diffuser and round structures with opal polycarbonate diffuser.
Strip LED on polycarbonate diffuser or LED module on darklight optic diffuser.
DAYTONA S1270 ROUND
power 80 W 24V 10400 lm
electronics / driver 24V DC
light control dimmable
DAYTONA S1800 ROUND
power 113 W 24V 14690 lm
electronics / driver 24V DC
light control dimmable
Available configurations
- Linear profiles: 570, 860, 1140, 1420, 1700 mm
- Bent semicircular structures for round configurations: Ø 600, 900, 1270, 1800 mm
- Oval configurations: 600x1200, 900x2000, 900x2600, 1270x2100, 1270x3000, 1800x3500 mm
