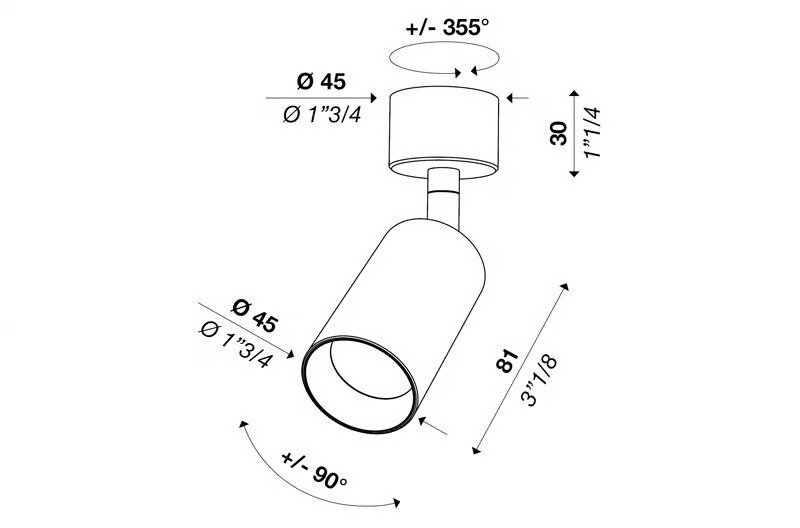

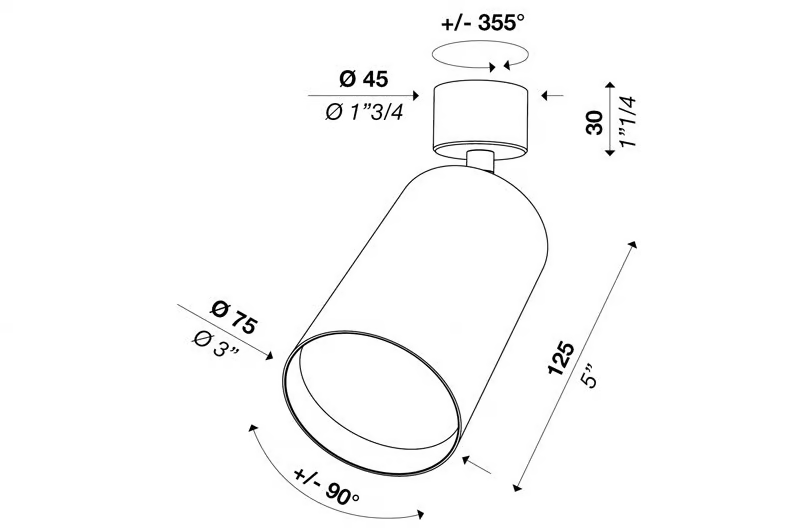

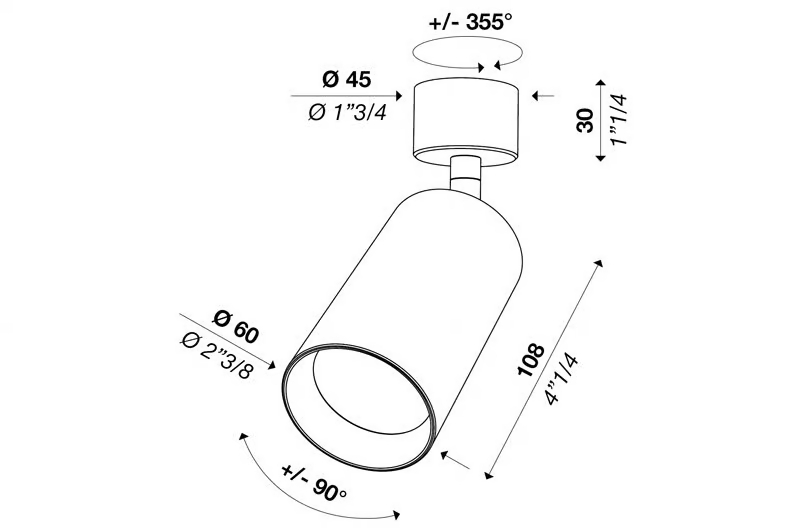

Overall dimensions
Information
Cyl Mini Canopy is a spotlight for accent lighting Ø 45 mm with mini canopy, designed for low voltage multisystem track (48V), maximum flexibility in home, retail, hospitality and museum environments. Non-integrated driver to be placed remotely, available control versions On/Off, Dali and 0-1/10V. Aluminium structure white, black or brass coated.
Latest generation COB LED light source.
New precision PMMA lenses, available in 3 beam angles.
Black anti-glare ring.
Available in 3 diameters: Ø45, 60, 75 cm
CYL 45 MINI CANOPY
power 7 W 200mA 720 lm
electronics / driver 200mA
light control dimmable
CYL 60 MINI CANOPY
power 12 W 350mA 1300 lm
electronics / driver 350mA
light control dimmable
CYL 75 MINI CANOPY
power 17 W 500mA 1900 lm
electronics / driver 500mA
light control dimmable
