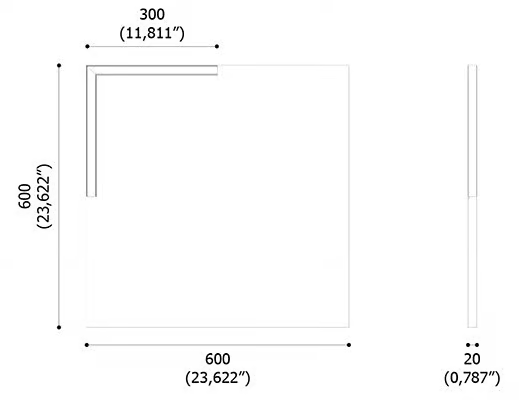

Overall dimensions
Information

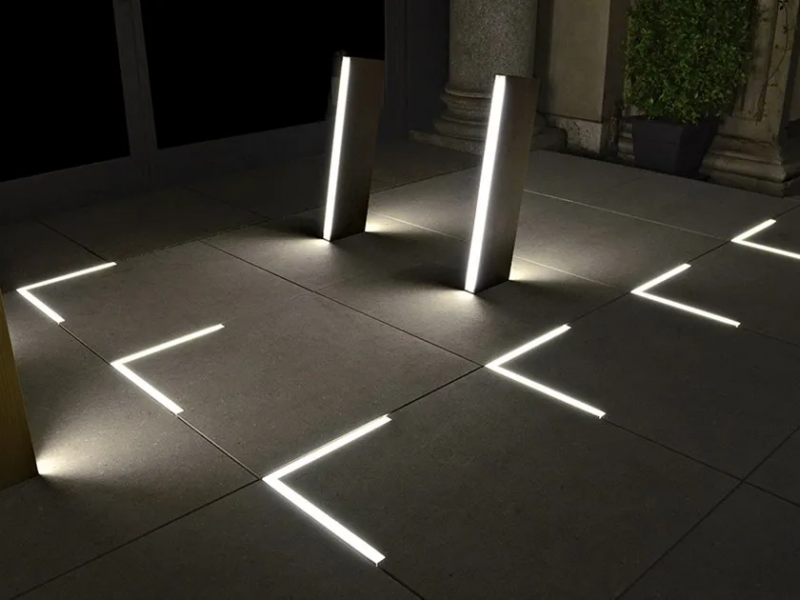

Outdoor luminous plate for floor installation.
Applications: ground
Settings: hotels, shopping centers, parkings, private houses, parks, squares, alleys, gardens
Installations: surface mounted
Materials: aluminium - porcelain stoneware - resin
Finishes: stone, sand
Light source: mid Power LED 140 - 180 lm/W
LED colours: 3700 K, 5200 K
Optics: opal diffuser
Functions: on-off
Features: high resistance walk over modular element
Power supply: 24 Vdc constant voltage
Protection degree: IP66/67, IK08
Load resistance: walk-over up to 5000 kg
Certifications: CE.
