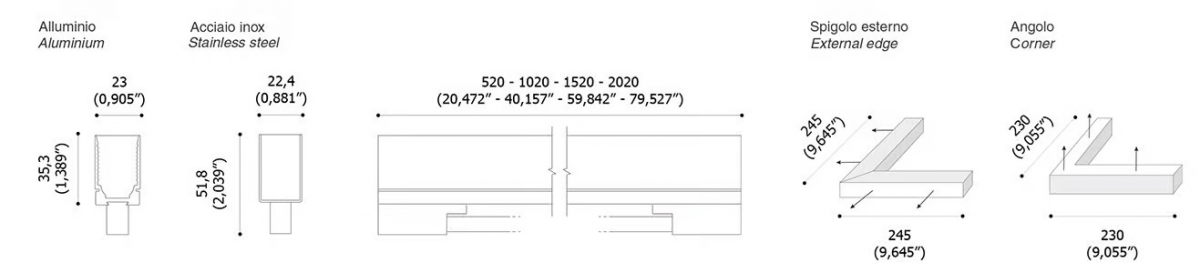

Overall dimensions
Information
Professional modular linear lighting system for signal lighting suitable for indoor and outdoor settings.
Applications: steps, niches, walls, cornices, parapets, handrails, shelves, windows, showcases
Settings: hotels, museums, historical buildings, private houses
Installations: recessed with housing
Materials: aluminium or stainless steel 316L - resins
Finishes: anodized aluminium or satin stainless steel
Light source: mid Power LED 140 - 180 lm/W
LED colours: 2700 K, 3000 K, 3300 K, 3700 K, 4000 K, 5200 K, RGB, RGB MOVE
Optics: transparent or opal diffuser
Functions: on-off, dimmable
Features: reduced dimensions - lengths up to 2 meters
Power supply: 24 Vdc constant voltage
Protection degree: IP66/68 (IP68 up to 30 meters depth), IK10
Load resistance: static load up to 2000 kg
Certifications: CE, UL/CUL
